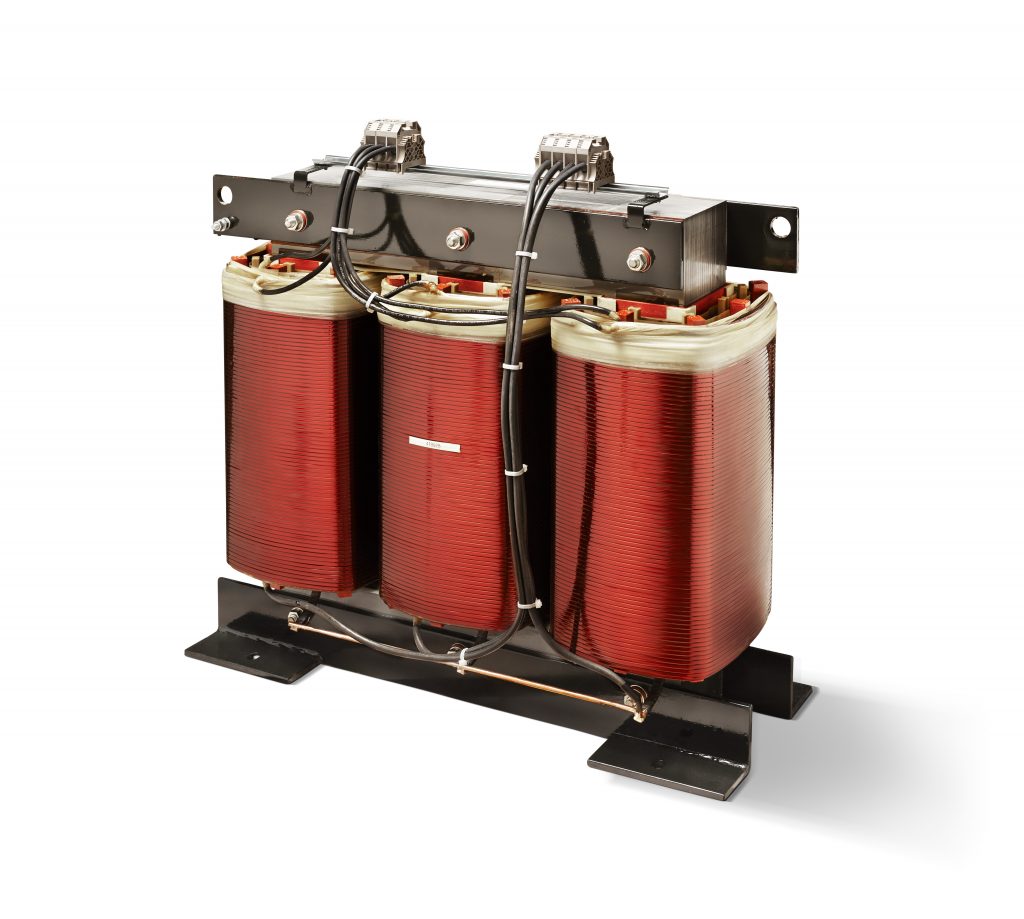

D4TB, D4TF – Three-phase transformers



Designed and tested according

· IEC/EN 61558-2-1 / EN 60076-11

Typical applications

Inverter applications

Basic equipment

Separate windings
Insulation class B / F 25 kVA
Ambient temperature –25 to 40 °C
Connection terminal (<=115 A) Frequency 50/60 Hz

Sample order

requested type D4TB20
requested rated input voltage 400 V
requested rated output voltage 320 V
requested vector group Yd5

The correct type designation reads D4TB20 (400/320) Yd5

The unambiguous article number of your configuration will be defined by trafomodern during the offer- and order process.

Technical notes

Important notes:

Static shield windings is additional shielding between primary and secondary sides.
For versions with increased climate resistance, the transformers is supplied with a specially insulated finish.The finish enables the transformer to be used in areas of high humidity.
Transformer version with reinforced insulation upon request.

CUR according to EIS 130 or EIS 155 to OBJY2. or OBJY8.E160829 (Systems, Electrical Insulation – Component bzw. Systems, Electrical Insulation Certified for Canada – Component)

When ordering, the following information must be added to the type designation:D4TF(*/*)*1st place holder  ≙ rated input voltage
2nd place holder ≙ rated output voltage
3rd place holder ≙ vector group

CAD-data

show

Type rating for use according to insulation class1) B kVA Type rating for use according to insulation class1) F kVA Rated input voltage V (selectable) Rated output voltage V (selectable) Type Price per unit Euro Price for currents up to A Cu-factor 2)
4,0 50-1000 50-1000 D4TB4,0(*/*)* Price on requestPrice on request15
5,0 50-1000 50-1000 D4TB5,0(*/*)* 11,90
6,3 50-1000 50-1000 D4TB6,3(*/*)* 10,00
8,0 50-1000 50-1000 D4TB8,0(*/*)* 11,00
10,0 50-1000 50-1000 D4TB10,0(*/*)* 13,50
12,5 50-1000 50-1000 D4TB12,5(*/*)* 14,90
16,0 50-1000 50-1000 D4TB16,0(*/*)* 26,40
20,0 50-1000 50-1000 D4TB20,0(*/*)* 38,30
25 50-1000 50-1000 D4TF25,0(*/*)* 38,50
32 50-1000 50-1000 D4TF32,0(*/*)* 39,50
40 50-1000 50-1000 D4TF40,0(*/*)* 51,00
50 50-1000 50-1000 D4TF50,0(*/*)* 72,80
63 50-1000 50-1000 D4TF63,0(*/*)* 61,40
80 50-1000 50-1000 D4TF80,0(*/*)* 110,00
100 50-1000 50-1000 D4TF100,0(*/*)* 120,00

1) Rated output when used according to insulation class B, maximum of 130° C; for insulation class F maximum of 155° C
2) The calculation method of the material price surcharge will be explained in Section 2.1 in the general conditions of busines

Typ total
weight		 Leer-
lauf-
verluste		 Kurz-
schluss-
verluste*		 Kurz-
schluss-
spannung		 Wirkungs-
grad		 a b b1 c c1 e f ø g
kg W W %
D4TB4,0 31 45 210 ≥4 0,88 300 154 147 290 260 224 119 10 x 18
D4TB5,0 45 40 270 ≥4 0,9 300 193 162 334 260 224 134 10 x 18
D4TB6,3 55 60 315 ≥4 0,9 390 184 152 384 310 350 126 10 x 18
D4TB8,0 70 75 340 ≥4 0,91 390 199 167 384 310 350 141 10 x 18
D4TB10,0 95 95 505 ≥4 0,92 450 204 172 434 360 400 142 13 x 20
D4TB12,5 95 95 490 ≥4 0,96 450 204 172 434 360 400 142 13 x 20
D4TB16,0 115 120 650 ≥4 0,97 450 264 232 434 360 400 202 13 x 20
D4TB20,0 150 130 720 ≥4 0,97 540 267 – 496 – 450 197 14 x 20



Dimensional drawings for D4TF25,0 to D4TF100 available on request
all dimensions in mm
